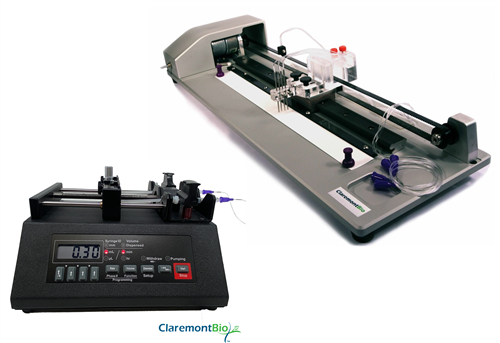

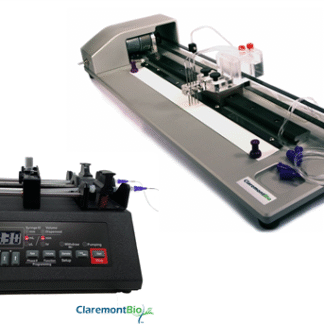

Automated Lateral Flow Reagent Dispenser (ALFRD), BASIC PACKAGE

ALFRD Basic Package :

with New Era Four Channel Syringe Pump and Standard Accessories!

Customize your LFA line spacing with our assortment of heads
Save time and money by adding our Premium Accessories!
New Era Four Channel Syringe Pump
4 Lines Maximum

Overview:
ClaremontBio’s ALFRD is an inexpensive and reliable alternative for dispensing reagents onto membranes or paper. It is ideal for development or small-scale production lateral flow or paper-based fluidic applications and is capable of producing multiple and reproducible lines simultaneously.

Key Features:
Reproducible, well defined test lines
No heating of reagents
Low-contact, adjustable dispense tips
Dispense colloidal conjugate or viscous solutions
Interchangeable and low-cost dispense heads and tips
Adjustable dispense volume
Simultaneous dispensing of up to four lines
Accommodates 30 cm membrane length of varying width
Includes New Era 4000 four-channel Syringe Pump

Standard Accessories :
10x 1mL Syringes
10x Dispensing Tips
1 Set of Magnets
1 3/32″ Hex Wrench
Shim Height Adjustment Kit

Peer-Reviewed Citations & References:
Lateral Flow Reagent Dispenser Citations and References

Specifications:
Dimensions (L x W x H): 457 x 156 x 66 mm (excluding external power supply and syringe pump)
Weight: 2.45 kg
Power: 120 VAC; provides variable 3 – 12 V DC to ALFRD
Dispense Area (L x W): 302 x 64 mm

Applications:
Lateral Flow / Immunochromatographic strip test / Rapid Diagnostic Tests (RTDs)
Paper-based fluidics assays
Flow-through assays

Download datasheet
