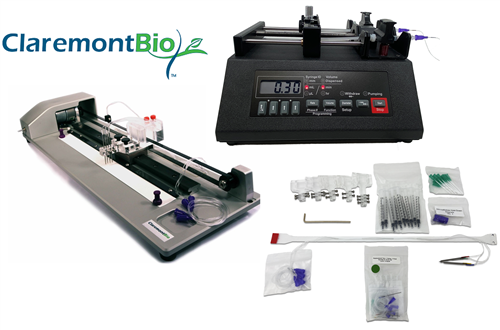

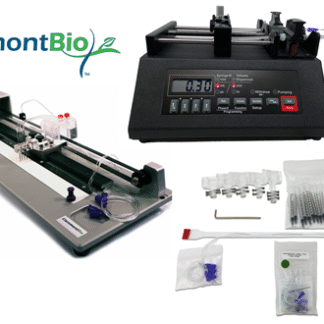

Automated Lateral Flow Reagent Dispenser (BEYOND BASIC PACKAGE)

ALFRD Beyond Basic Package :

with New Era Four Channel Syringe Pump and Premium Accessories!

Customize your LFA line spacing with our assortment of heads
New Era 4000 four-channel syringe pump
4 Lines Maximum

Overview:
ClaremontBio’s ALFRD is an inexpensive and reliable alternative for dispensing reagents onto membranes or paper. It is ideal for development or small-scale production lateral flow or paper-based fluidic applications and is capable of producing multiple and reproducible lines simultaneously.

Key Features:
Reproducible, well defined test lines
No heating of reagents
Low-contact, adjustable dispense tips
Dispense colloidal conjugate or viscous solutions
Interchangeable and low-cost dispense heads and tips
Adjustable dispense volume
Simultaneous dispensing of up to 4 lines (customizable for additional lines)
Accommodates 30 cm membrane length of varying width
Includes New Era 4000 four-channel syringe pump

Premium Accessories :
Complete Assortment of Replacement Heads
1 EZ Replacement Ribbon
10x 1mL Syringes
10x Dispensing Tips
2 Sets of Base Magnets
1 3/32″ Hex Wrench
Shim Height Adjustment Kit

Peer-Reviewed Citations & References:
Lateral Flow Reagent Dispenser Citations and References

Specifications:
Dimensions (L x W x H): 457 x 156 x 66 mm (excluding external power supply and syringe pump)
Weight: 2.45 kg
Power: 120 VAC; provides variable 3 – 12 V DC to ALFRD
Dispense Area (L x W): 302 x 64 mm

Applications:
Lateral Flow / Immunochromatographic strip test / Rapid Diagnostic Tests (RTDs)
Paper-based fluidics assays
Flow-through assays

Download datasheet
